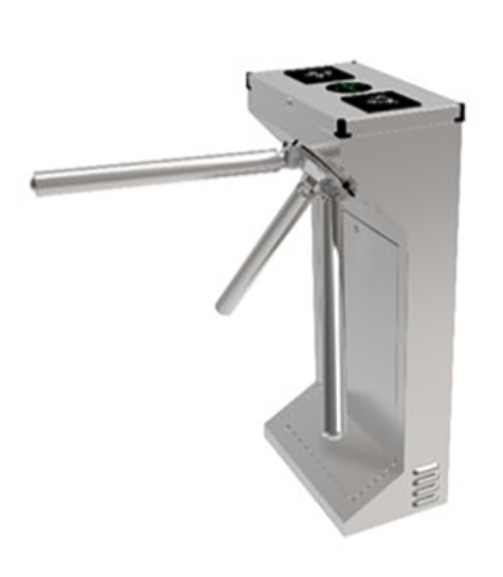

Trunstile Image

Tripod Turnstile Slim

Category: Security Devices Tags: Tripod Turnstile Slim, Turnstile

Turnstile space features a compact, efficient design. The turnstile can integrate any access control system and can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, and alarm system. The unique drop arm feature provides a failsafe safety solution in case of emergency or power failure, providing egress in case of crisis evacuations.

FEATURES AND BENEFITS CONTROLLER:
- Semi auto mode: After reading the card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
- Automatic reset of barrier arms after each passage
- Cable or wireless remote control panel key to override control for emergency situations to provide free
OPERATING MODES:
- Single passage in the set direction
- Bidirectional single passage
- Free passage in the set direction
- Always free or locked
MECHANISM:
- Heavy duty design for 24 hours continuous application
- Indoor and outdoor application(optional)
- High durability with industrial parts
- All the running is quiet without any noise and shock
COMMUNICATION:
- Dry contact relay with 12 volt or 24 volt plus
- RS485 or TCPIP communication with computer(optional)
MATERIAL:
- Housing: Stainless steel AISI304

Specifications

Specifications

MODEL NO.	ECO TRIO SA
PASSAGE WIDTH	550MM
POWER SUPPLY	220230V(AC)5060HZ/110VAC60HZ
OPERATION VOLTAGE	24 V(DC)
POWER CONSUMPTION	32W
FREQUENCY	5060 Hz
PROTECTION LEVEL	IP55
WORKING TEMPERATURE	30DEG.CELSIUSTO+65DEG.CELSIUS
ELECTROMAGNETIC DRIVE	DC
DOMENSIONS	480 X 280X 980MM
NET WEIGHTINCLUDING BARS	44KG
THROUGHPUT RATE	3040 p/m
DUTY CYCLE	100%
